BlocFoot 1000mm Rubber Roof Support Foot - 41 x 21mm Channel

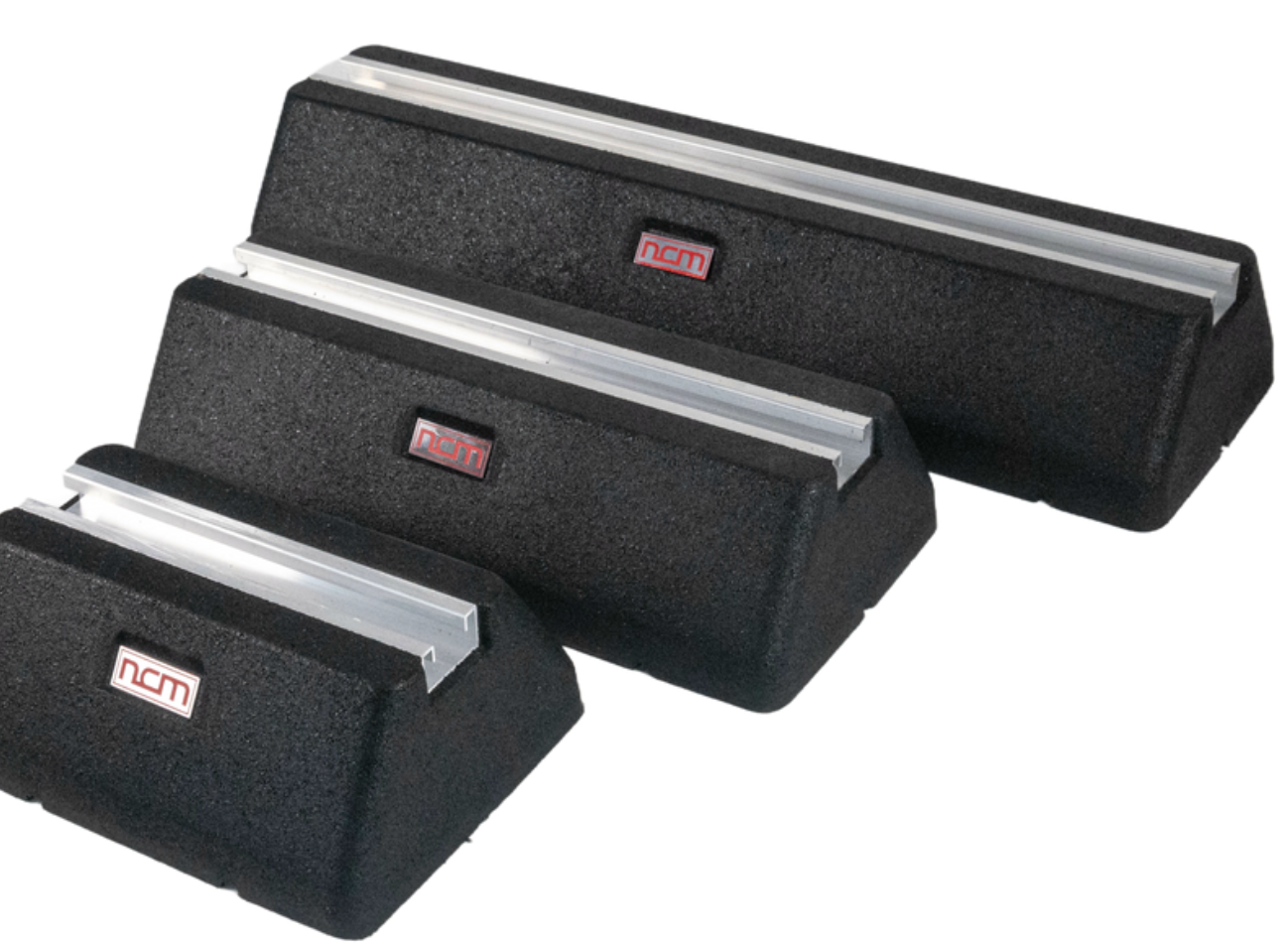

The BlocFoot® 1000mm rubber mounting foot provides a reliable, non-penetrative support solution for pipework, cable tray and mechanical plant on rooftops and in exposed outdoor environments. At 1000mm it offers the highest load capacity in the range, spanning wider spacings for heavier plant.

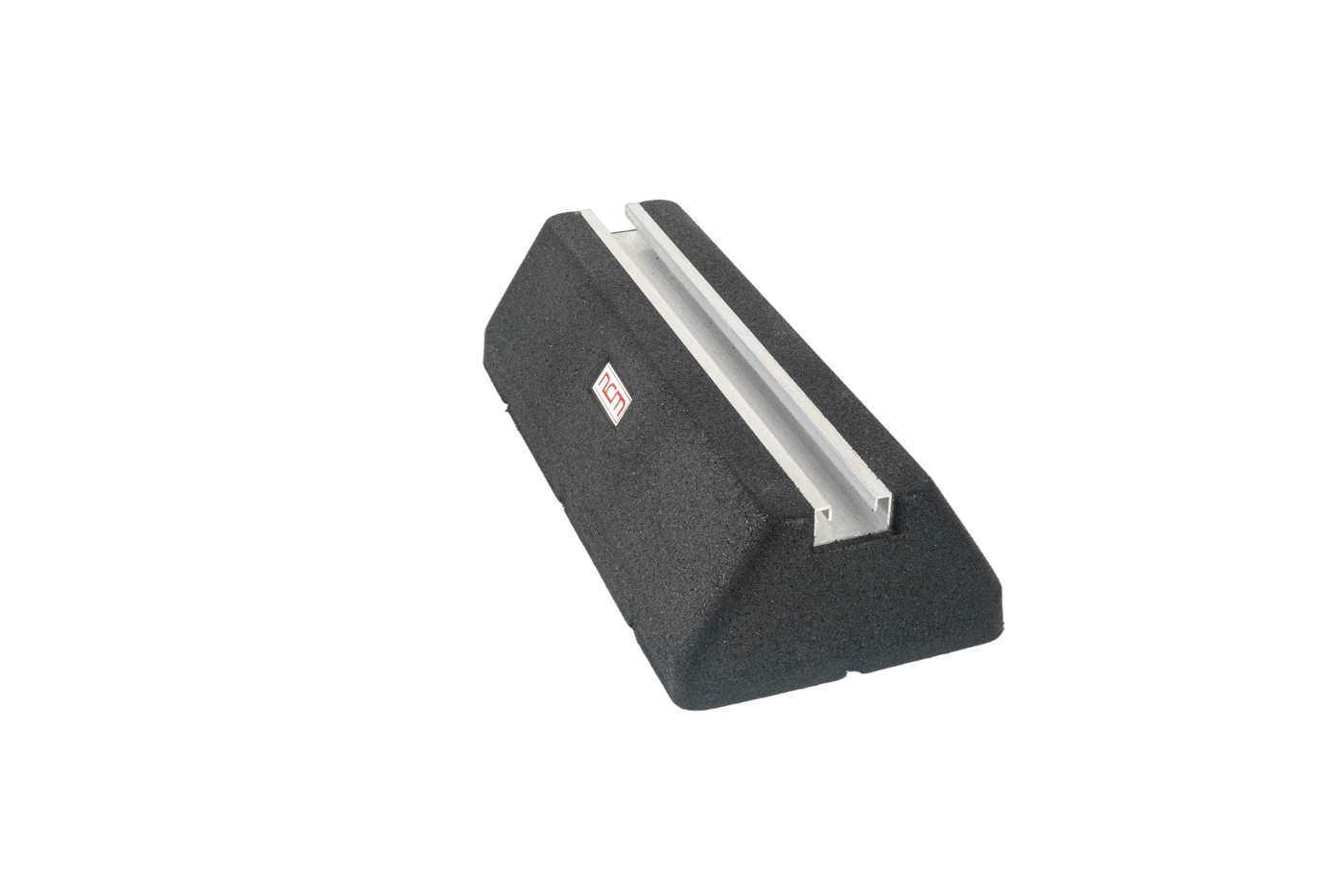

Each foot is moulded from recycled SBR rubber with a 41 x 21mm aluminium channel bonded into a recess in the top face, so standard channel fixings and strut nuts can be used throughout. A T-bar profile on the channel creates a stronger bond between the channel and the rubber, and integrated slots let rainwater drain away rather than pooling around the base.

Features

• Manufactured from recycled SBR rubber
• 41 x 21mm bonded aluminium channel, recessed into the top of the foot

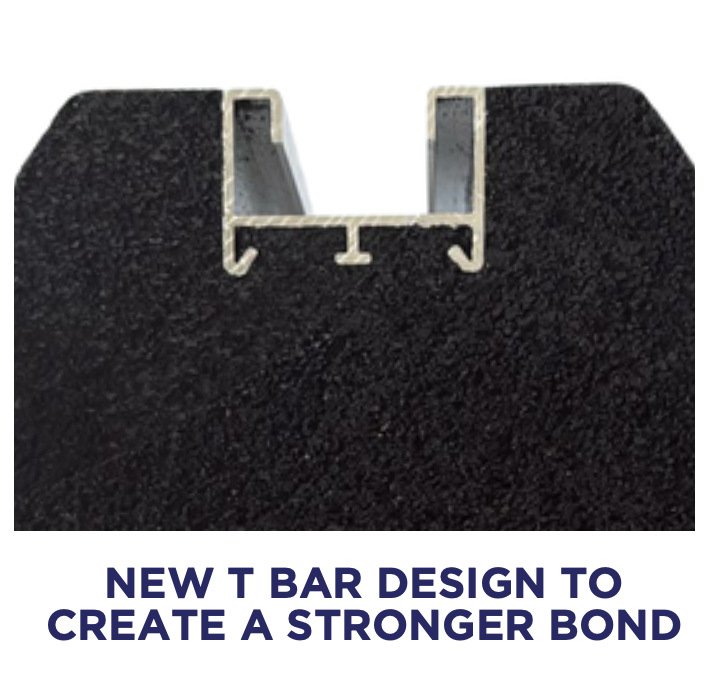

• T-bar channel design for an improved rubber-to-channel bond
• Integrated drainage slots for rainwater run-off
• Suitable for standard channel fixings
• Working temperature range -40°C to +80°C (BS EN 60068-2-14)
• Non-penetrative - no damage to the roof membrane

Typical applications

• Rooftop pipework support
• Cable tray and cable basket support
• Air conditioning outdoor units
• Air source heat pump installations

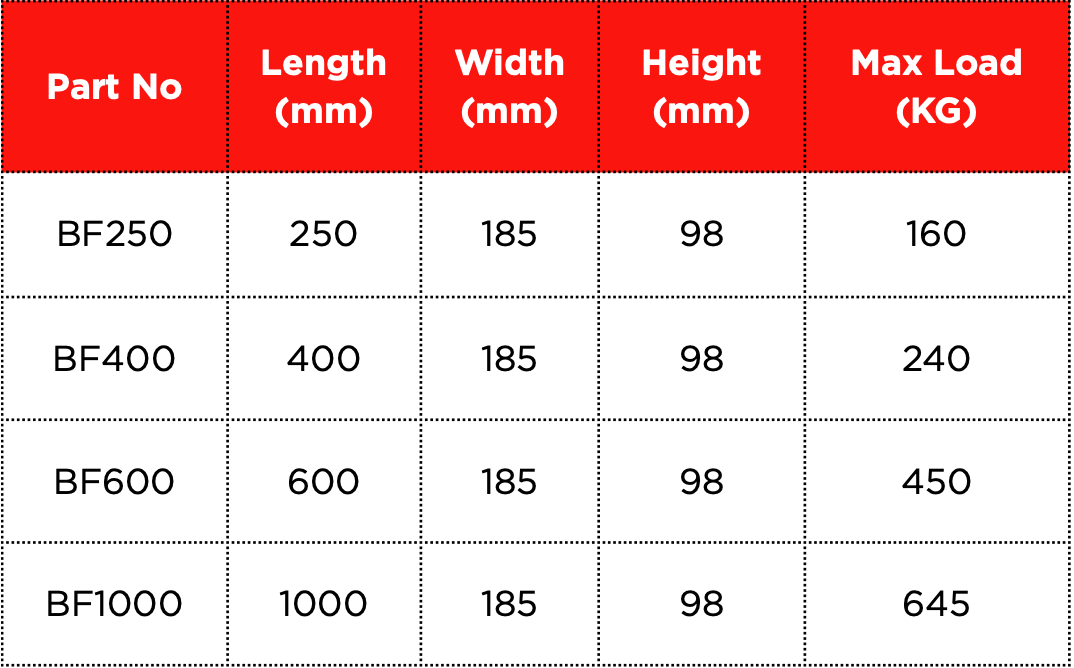

Specification

BlocFoot® is a registered trademark of NCM Distributors.
