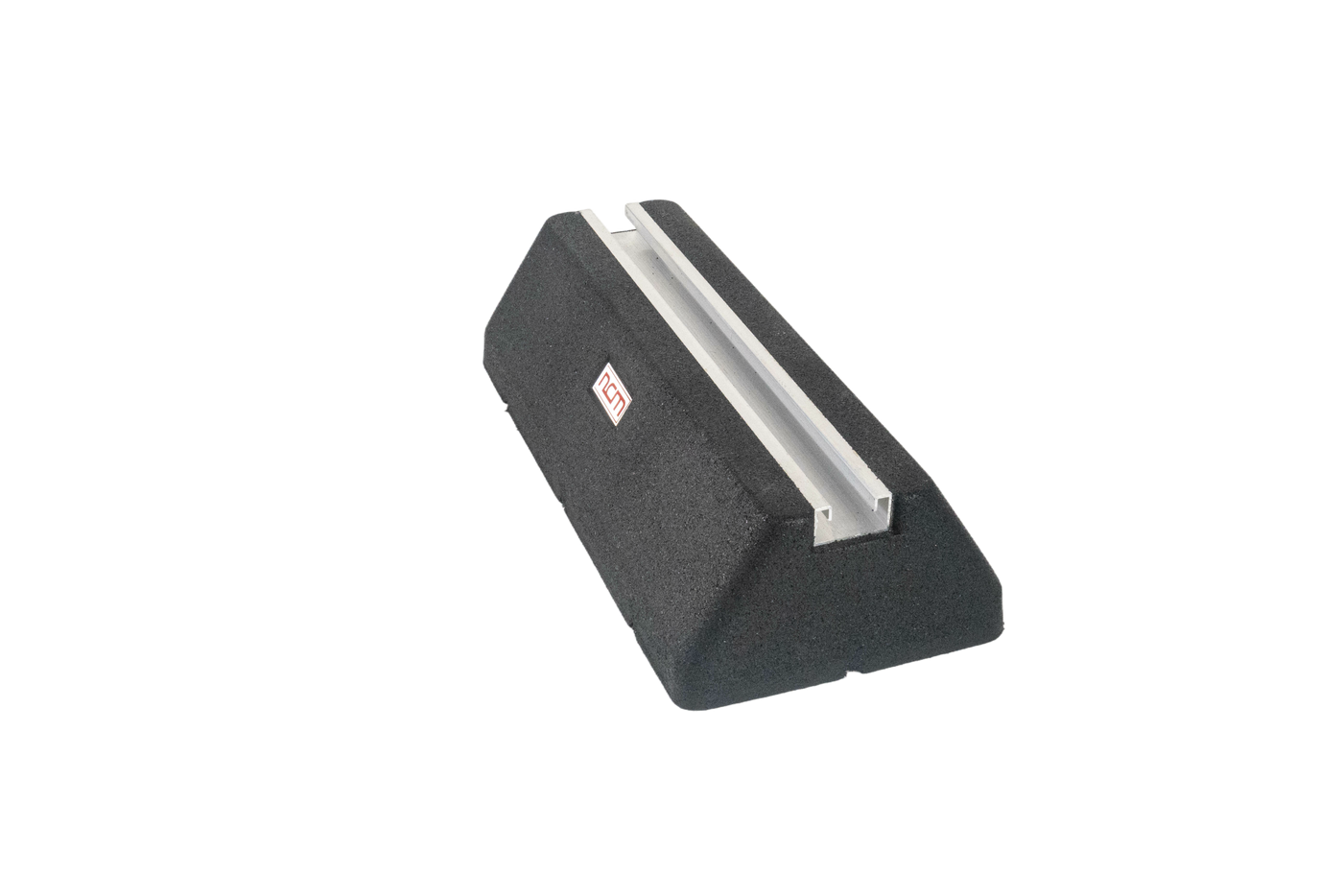

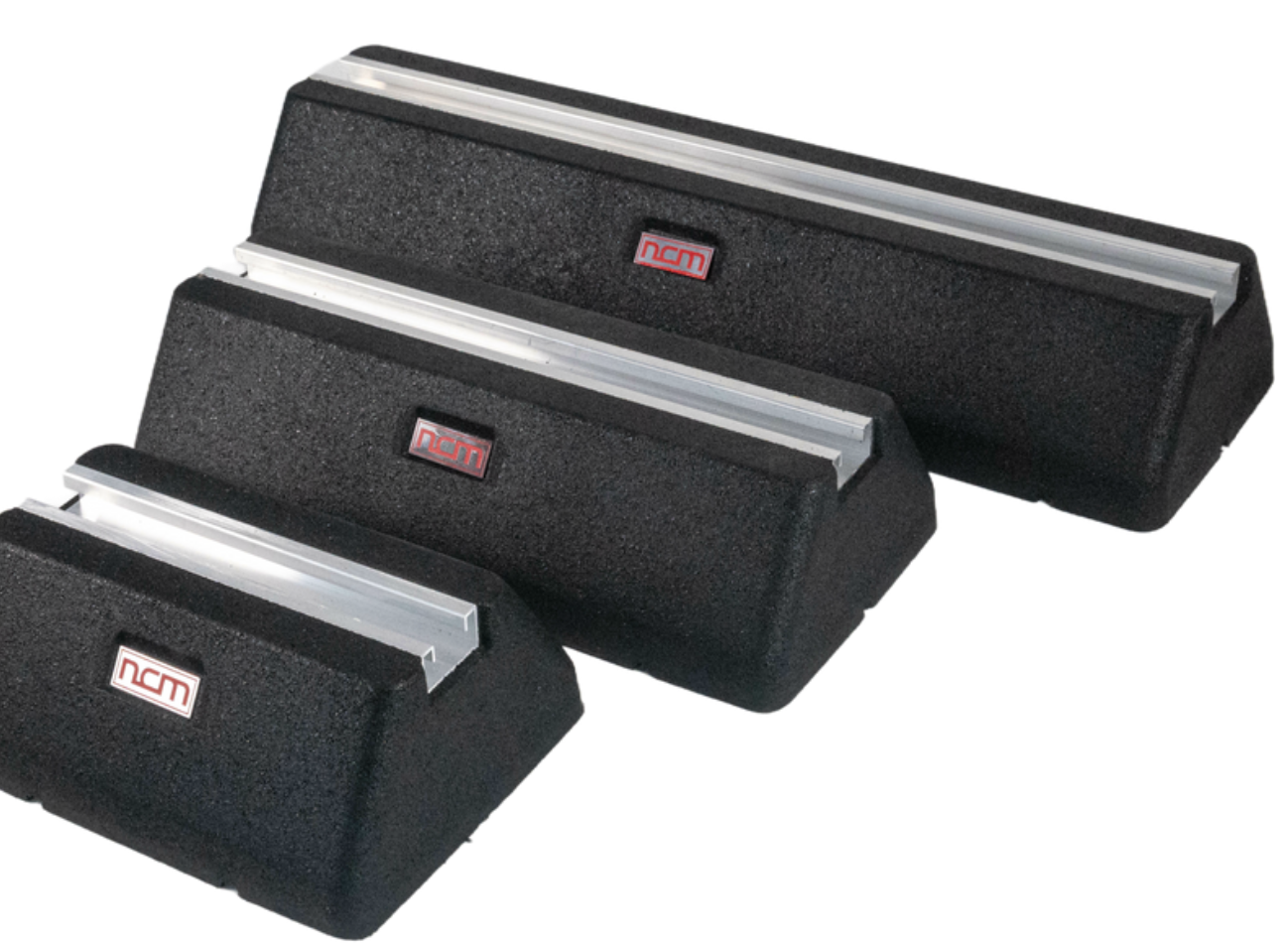

BlocFoot 250mm Rubber Roof Support Foot - 41 x 21mm Channel

The BlocFoot® 250mm rubber mounting foot provides a reliable, non-penetrative support solution for pipework, cable tray and mechanical plant on rooftops and in exposed outdoor environments.

Each foot is moulded from recycled SBR rubber with a 41 x 21mm aluminium channel bonded into a recess in the top face, so standard channel fixings and strut nuts can be used throughout. A T-bar profile on the channel creates a stronger bond between the channel and the rubber, and integrated slots let rainwater drain away rather than pooling around the base.

Features

• Manufactured from recycled SBR rubber
• 41 x 21mm bonded aluminium channel, recessed into the top of the foot

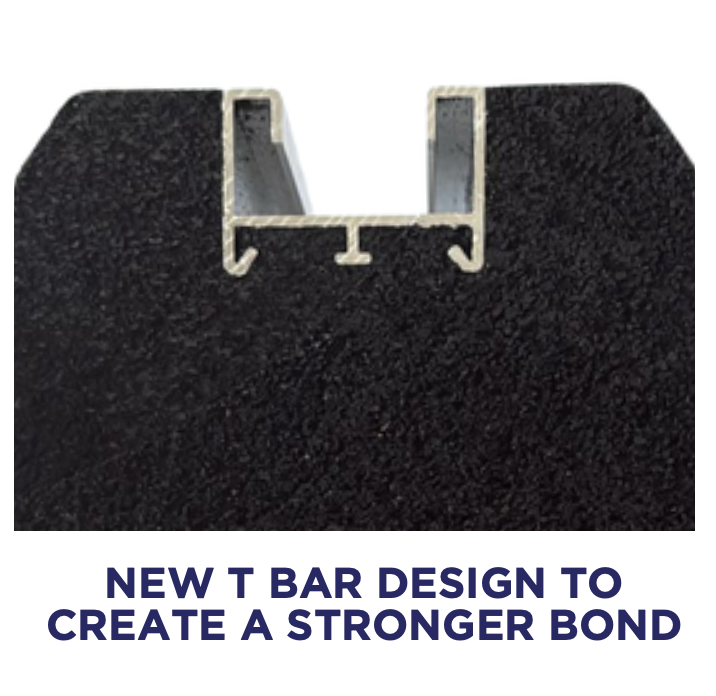

• T-bar channel design for an improved rubber-to-channel bond
• Integrated drainage slots for rainwater run-off
• Suitable for standard channel fixings
• Working temperature range -40°C to +80°C (BS EN 60068-2-14)
• Non-penetrative - no damage to the roof membrane

Typical applications

• Rooftop pipework support
• Cable tray and cable basket support
• Air conditioning outdoor units
• Air source heat pump installations

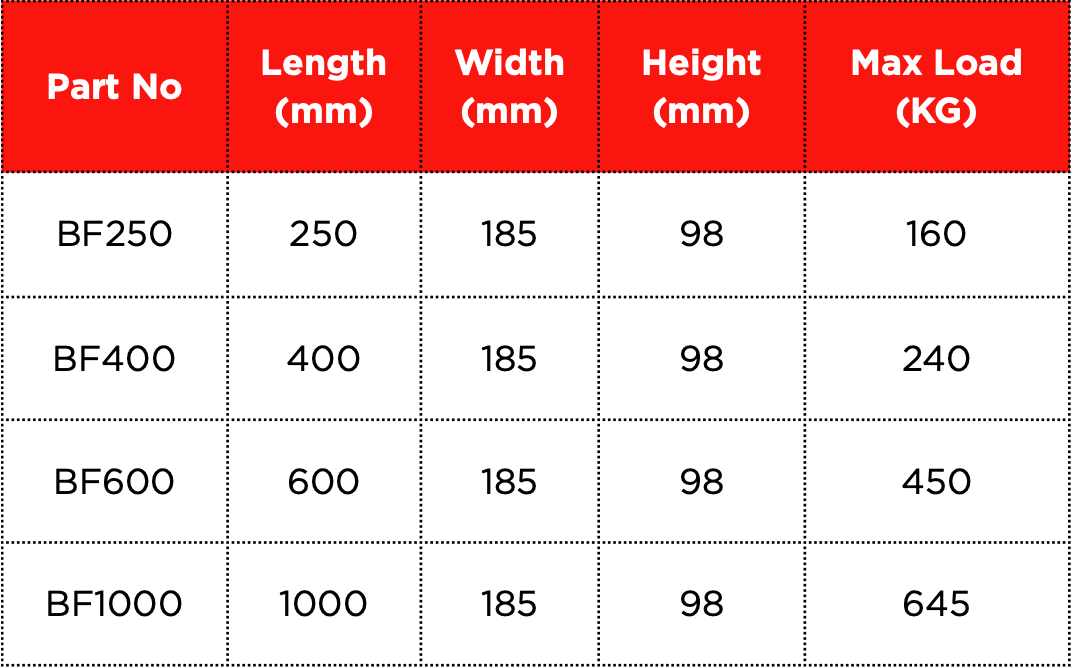

Specification

BlocFoot® is a registered trademark of NCM Distributors.
